Grandstream

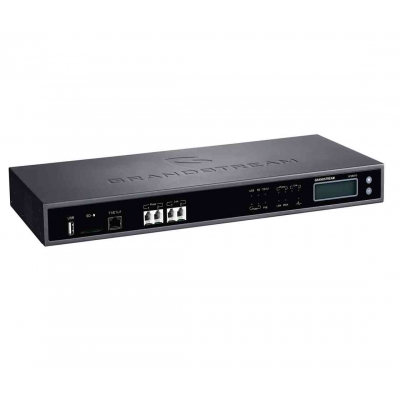

UCM6510

UCM6510

Designed to bring leading edge voice, video, data, and mobility features to medium and large businesses and small to medium enterprises. The UCM6510 IP PBX appliance creates a customizable, scalable and complete network solution. Powered by an advanced hardware and software functionalities, this converged voice, video, data, fax, security surveillance and mobility solution anchors any communications network.


Features

Supports up to 2000 SIP endpoint registrations, up to 200 concurrent calls and up to 64 conference attendees

1GHz quad-core Cortex A9 processor

1GB DDR3 Ram, 32GB Flash

1 Integrated T1/E1/J1 interface, 2PSTN trunk FXO ports, 2 analog telephone/Fax FXS ports with lifeline capability

Gigabit network ports with Integrates PoE, USB, SD card, integrated NAT router

Comprehensive security protection using SRTP, TLS and HTTPS with hardware encryption accelerator

Quickly setup and provision Grandstream endpoints using the Auto-Discovery and Zero Config feature within the product’s web user interface

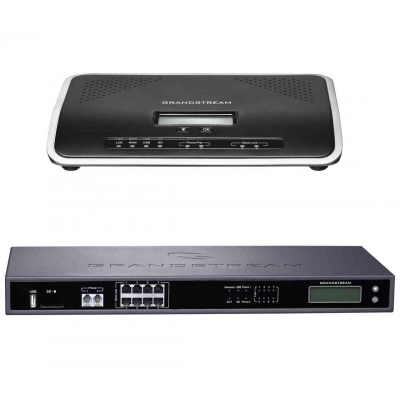

UCM6202

UCM6202

This IP PBX series allows businesses to unify multiple communication technologies, such as voice, video calling, video conferencing, video surveillance, data tools, mobility options and facility access management onto one common network.



Features

UCM6202 support up to 500 users and 50/75 concurrent calls,

Auto Discovery and Zero Configuration of Grandstream SIP endpoints

Integrated 2/4/8 PSTN trunk FXO ports, 2 analog telephone FXS ports with lifeline capability and up to 50 SIP trunk accounts

Gigabit network ports with Integrates PoE, USB, SD card

Supports up to a 5-level IVR (Interactive Voice Response)

Built-in call recordings server; recordings accessible via web user interface

Built-in Call Detail Records (CDR) for tracking phone usage by line, date, etc.

Supports multi-language auto-attendant and call queue to efficiently handle incoming calls

Strongest possible security protection using SRTP, TLS and HTTPS encryption

Supports any SIP video endpoint that uses the H.264, H.263 or H.263+ codecs

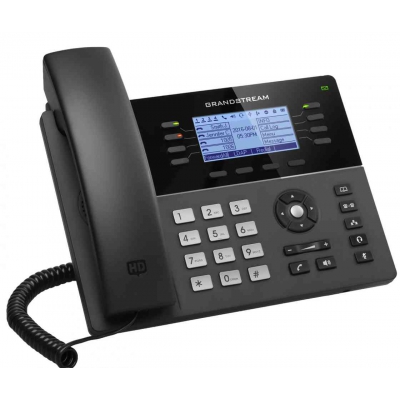

GXP1780

GXP1780


This Mid-Range IP phones is ideal for growing businesses as it offers a high-end, sleek design and mid-range capacity that business can grow with and depend on at the competitive price that you need now. The GXP1780 supports 8 lines, 4 SIP accounts and includes 32 digitally programmable BLF/speed-dial keys. The GXP1782 offers dual Gigabit ports to support up to 1000Mbps connections speeds while the GXP1780 offers dual 10/100Mbps ports.

Features
8 lines, 8 dual-color line keys (with 4 SIP accounts), 4 XML programmable context sensitive soft keys
32 digitally programmable & customizable BLF/fastdial keys
HD wideband audio, fullduplex speakerphone with advanced acoustic echo cancellation
5-way audio conferencing for easy conference calls
Dual-switched Gigabit ports (GXP1782) or dual-switched 10/100Mbps ports (GXP1780), integrated PoE
Built-in USB port for importing and exporting data only
Supports headset use with a RJ9 headset jack and EHS support for EHS-capable Plantronics headsets
TLS and SRTP security encryption technology to protect calls & accounts and Kensington Security Slot support
Large phonebook capacity with up to 2,000 contacts and call history with up to 500 records
Use with Grandstream’s UCM series IP PBX appliance for Zero- Config provisioning, also supports automated provisioning using TR-069 or AES encrypted XML configuration file

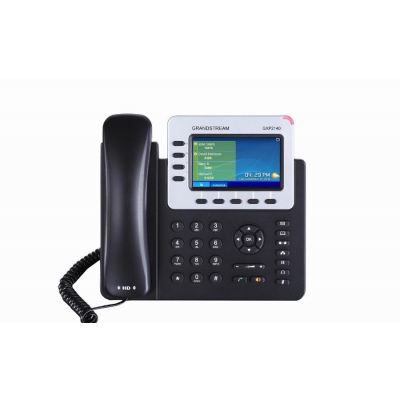

Gxp2140

Gxp2140

Grandstream GXP2140 A versatile Enterprise IP Telephone

Supports 4 lines, 4 SIP accounts and 5-way voice conferencing
HD audio on speakerphone and handset, 5 programmable context-sensitive soft keys
Compatible with GXP2200 LCD extension module (GXP2200 EXT)
4.3 inch (480x272) color-screen LCD
Dual Gigabit ports, integrated PoE
Integrated Bluetooth for use with Bluetooth headsets and Bluetooth-enabled mobile devices (transferring contact books and calls), USB, EHS for Plantronics headsets

Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphic Display 4.3 inch (480x272) TFT color LCD
Bluetooth Yes, Bluetooth V2.1
Feature Keys 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codecs Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
Telephony Features Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications Weather, currency, news, XML
HD Audio Yes, both on handset and speakerphone
Extension Module Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.
Base Stand Yes, 2 angled positions
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power & Green Energy Efficiency Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )
Physical Dimention: 228mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package weight: 1.55kg
Temperature and Humidity 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
Package Content GXP2140 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
Compliance FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3- 3, EN 60950-1, EN62479 AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)

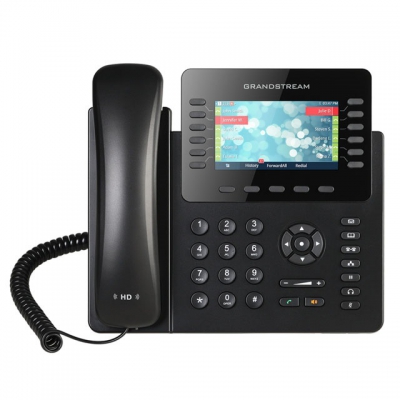

Gxp2170

Gxp2170

Grandstream GXP2170 High-End IP Phone For the High-Call Volume User
The GXP2170 is a powerful enterprise-grade IP phone that is ideal for busy users who handle high call volumes.

12 lines, 6 SIP accounts, 5 soft keys and 5-way voice conferencing
48 on-screen digitally customizable BLF/speed-dial keys
4.3 inch (480x272) color-screen LCD
Dual Gigabit ports, integrated PoE
Integrated Bluetooth
Supports up to four GXP2200EXT Modules for BLF/speed-dial access to up to 160 contacts


Specification

Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, 802.1x, TLS, SRTP, IPV6
Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with inte- grated PoE
Graphic Display: 4.3 inch (480x272) TFT color LCD
Feature Keys: 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codecs: Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and outof-band DTMF(in audio, RFC2833, SIP INFO)
Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
HD Audio: Yes,HD handset and speakerphone with support for wideband audio
Extension Module: Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.
Base Stand: Yes, 2 angled positions available, wall mountable
QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security: User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese
Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file.
Power & Green Energy Efficiency: Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet(802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)
Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg ; Package weight:1.43kg
Temperature and Humidity: Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing
Package Content: GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license
Compliance: FCC: Part 15 (CFR 47) Class B CE: EN55022  Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24;  AS/NZS 60950.1


Gxp1628

Gxp1628

Grandstream GXP1628 High-end IP phone for small business Grandstream
The GXP1628 is a powerful Gigabit IP phone designed for small businesses.
2 SIP accounts, 2 line keys, 3-way conferencing, 3 XML programmable context-sensitive soft keys
HD audio on speakerphone and handset
Dual-switched Gigabit ports, integrated PoE
8 dual-colored BLF/speed dial keys
EHS support for Plantronics headsets
Up to 500 contacts, call history up to 200 records


Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

Networking Interfaces Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphical Display 132 x 48 backlit graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5
(navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER,
CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD,
PAGE/INTERCOM, RECORD, HOME

Voice Codecs
Support for G.711μ/a, G.722 (wide-band), G.723(pending), G.726-32, G.729 A/B, in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO)

Telephony Features Hold, transfer, forward, 3-way conference, call park, pickup, shared-call-appearance
(SCA)/
bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy and fail-over
HD Audio Yes, HD handset with support for wideband audio
Headset Jack RJ9 headset jack (allowing EHS with Plantronics headsets)
Base Stand Yes, 2 angled positions available, wall mountable
Wall Mountable Yes
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES encrypted configuration file, SRTP, TLS, 802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and etc
Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE: IEEE802.3af Class 2, 3.84W-6.49W

Physical
Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset)
Unit weight: 0.8kg; Package weight: 1.2kg

Operating Temperature & Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing
Package Content
GXP1628 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation
Guide, brochure, GPL License

Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024 Class B; EN61000-3-2, EN61000-3-3, EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1

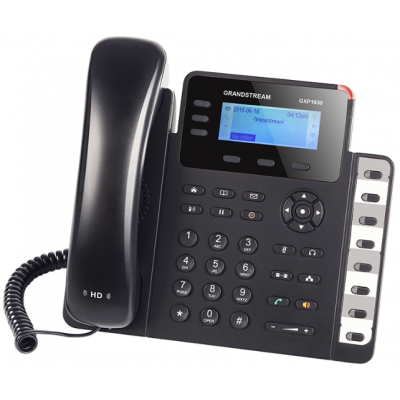

Gxp1630

Gxp1630

Grandstream GXP1630
A Small Business Gigabit IP Phone
3 SIP accounts, 3 line keys, 4-way conferencing, 3 XML programmable context-sensitive soft keys
HD audio on speakerphone and handset
Dual-switched Gigabit ports, integrated PoE
8 dual-colored BLF/speed dial keys
EHS support for Plantronics headsets
Up to 500 contacts, call history up to 200 records



Protocols/Standards:
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP
Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphic Display: 132 x 64 backlit graphical LCD display
Feature Keys:
3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context
sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated functionkeys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE,
VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD,
HOME

Voice Codecs:
Support for G.711/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B,
iLBC (pending), Opus (pending), in-band and out-of-band DTMF (In audio, RFC2833,
SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features:
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way
conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable
phone book (XML, LDAP, up to 500 items), call waiting, call history (up to
200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot
desking, personalized music ringtones, server redundancy & fail-over

Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio: Yes, HD handset and speakerphone with support for wideband audio
Base Stand: Yes, 2 angled positions available, wall mountable
Headset Jack: Yes
QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security:
User and administrator level access control, MD5 and MD5-sess based authentication,
256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media
access control

Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified
and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning:
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES
encrypted XML configuration file

Power and Green Energy: Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE:
Efficiency: IEEE802.3 af Class 2, 3.84W-6.49W
Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset)
Unit weight:0.8kg; Package weight: 1.2kg
Temperature and Humidity:
Operation: 0C to 40C, Storage: -10C to 60C ,
Humidity: 10% to 90% Non-condensing

Package Content:
GXP1630 phone, handset with cord, base stand, universal power supply, network
cable, Quick Installation Guide, brochure, GPL License

Compliance:
FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024 Class B; EN61000-3-2,
EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950;
AS/NZS 60950.1
